electro magnetic lock for Type 2 socket, DSIEC-ELC

Details

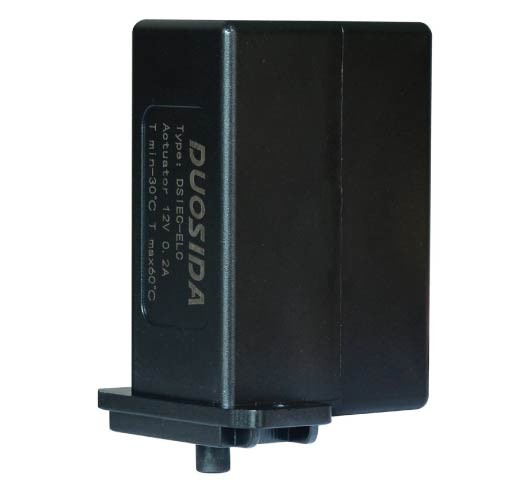

Duosida electro magnetic lock for Type 2 socket, DSIEC-ELC



• socket type: type 2
• coil operating voltage: 12 V
• coil current consumption: 0.2 A
• operating cycle: ON 1 sec - OFF 10 sec
• Small size for compact designs
• mechanical life: >20000 cycles
• operating temperature range: -30 ... +50°C
• flammability grade: UL94HB
• insulation class: B

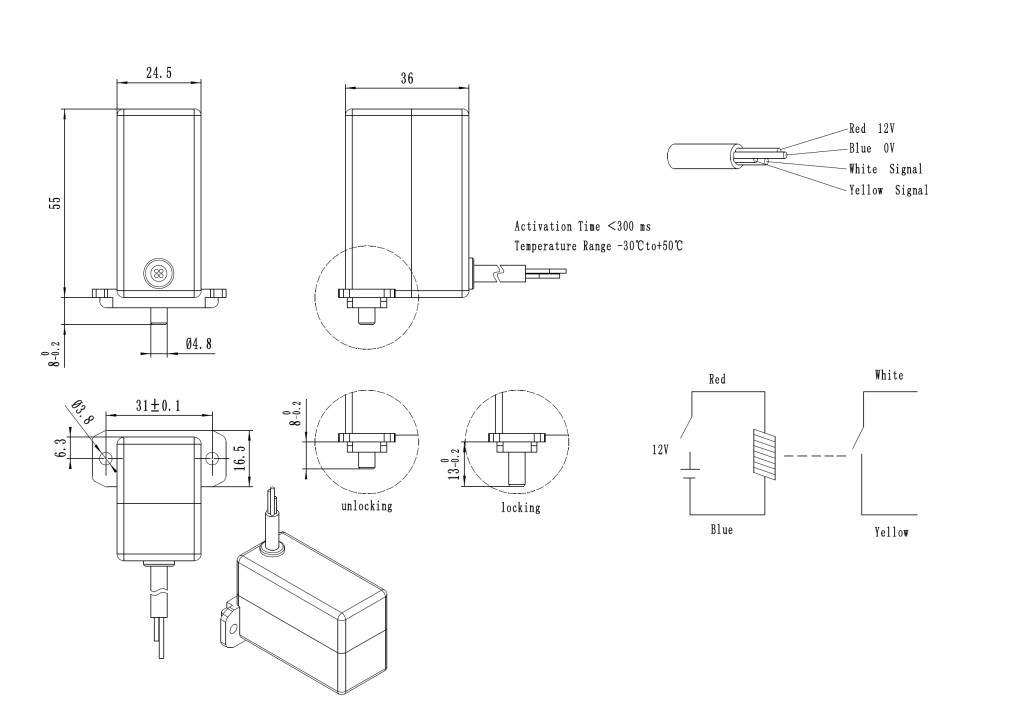

• wiring: 4×0,25 mm2
• coil wiring: red+blue
• control contact: yellow+white
  If there is no 12V holding voltage, spring return automatically releases the latch.

Data

Producer:

Duosida

Weight:

86 g/db
