Charging station with 2x11 kW Duosida wallbox charger and 5 m Type 2 charging cable

1 708 €+áfa= 2 169 €

Charging station with 2x11 kW Duosida wallbox charger and 5 m Type 2 charging cable

Available for order

1 708 €+áfa= 2 169 €

Type of construction:

with charging cable

with socket

Plug Type (EV side):

Type 2

Power:

2 x 22 kW (3×32 A)

2 x 11 kW (3×16 A)

2 x 7.4 kW (1×32 A)

11 kW (3×16 A)

22 kW (3×32 A)

Length of cable:

5 m

Number of phase:

Current:

16 A

Identification mode:

RFID, WIFI, OCPP

Bonus point : 0 €

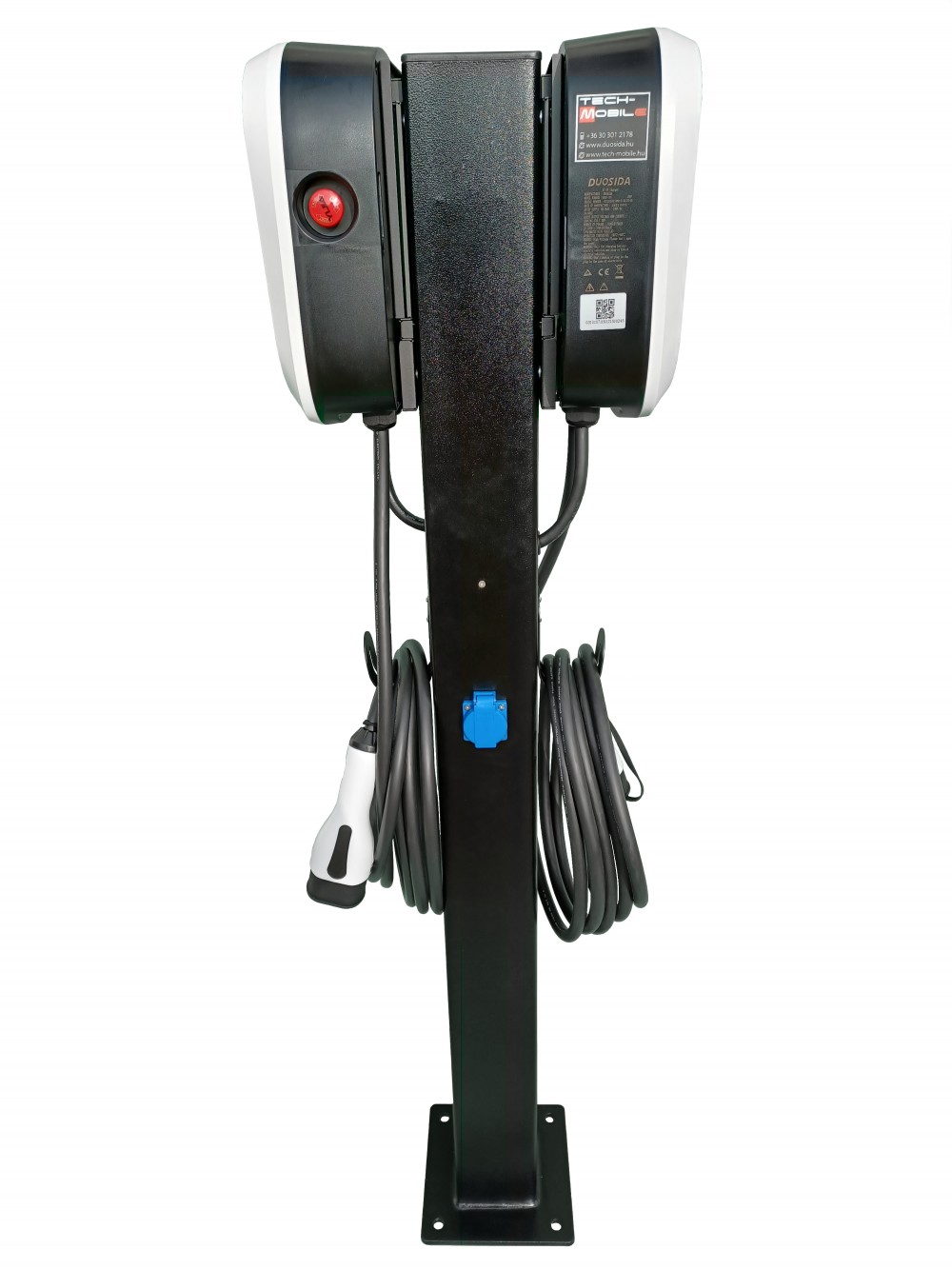

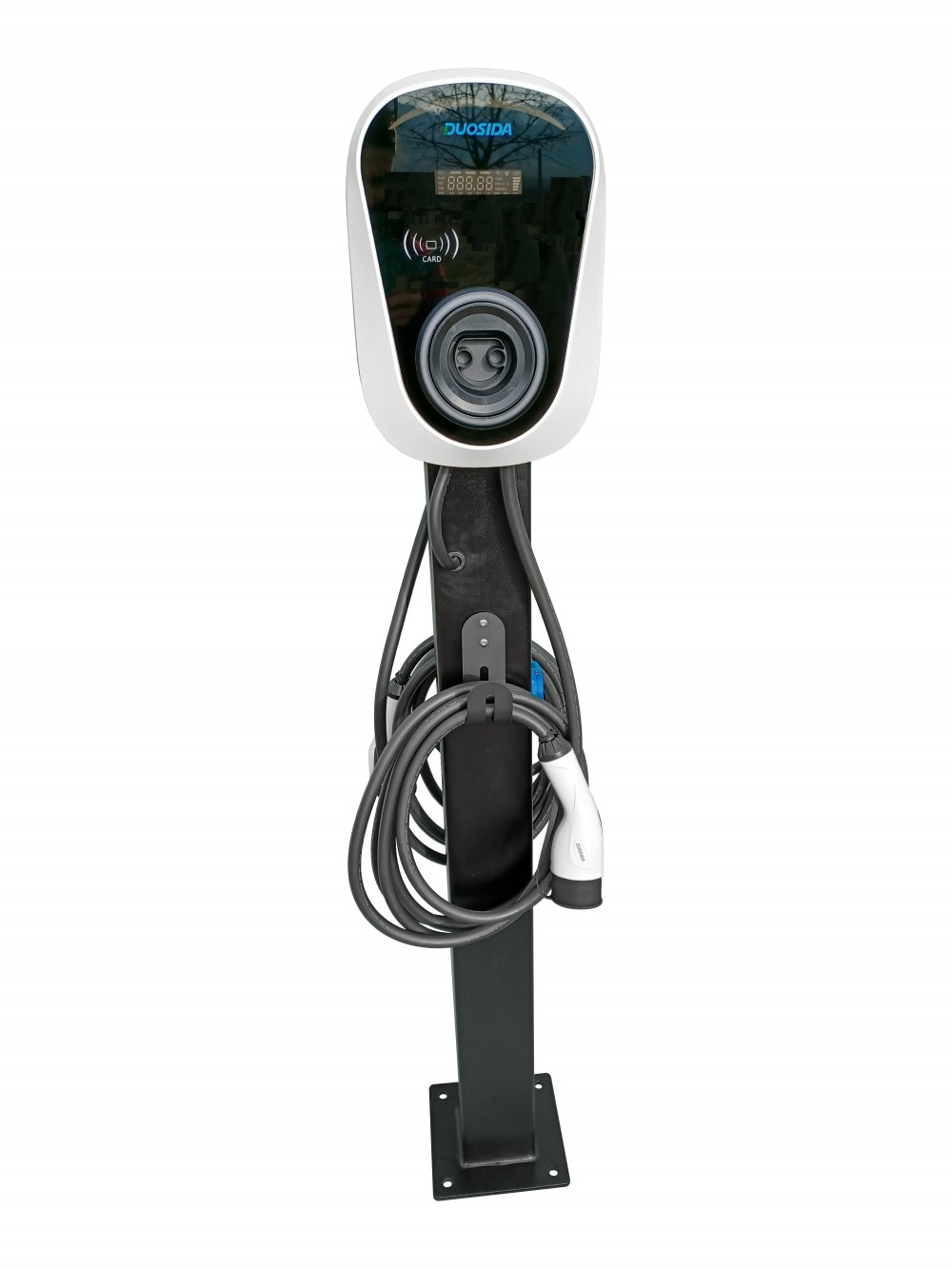

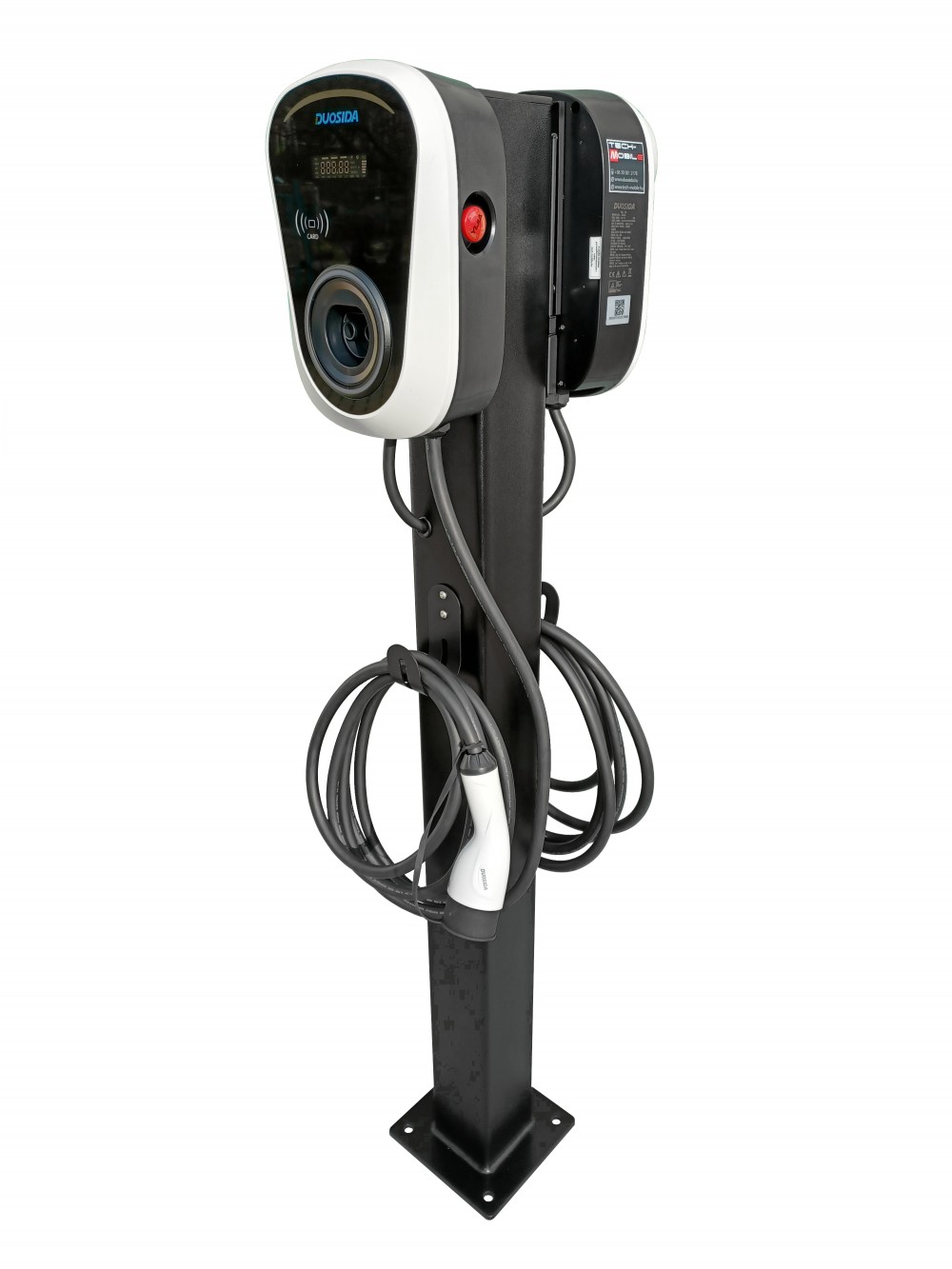

Electric vehicle charging station with 2x11 kW 3-phase Duosida wall chargers, 5m Type 2 plug cable, WIFI, and charging management

During the electric vehicle charging process, other consumers can also be powered via the built-in 230 V socket in the station.
Upon request, we can provide LED lighting, which, in addition to constant directional lighting, also activates a spotlight that senses our movement.
The station is made of black powder-coated rectangular tubing.

Station size: 12 × 12 × 150 cm
Charging power: max. 2x11 kW
Charging current: 6...16 A (the desired value can be easily adjusted via the app connected to the wall charger’s WIFI hotspot)
RFID reader + 6 cards (use is not mandatory, but it ensures that unauthorized users cannot charge with our device)
LED information panel
Free cloud service
Charger cable length: 5 m
Connector type: Type 2
IP Plug rating: IP 55
Warranty: 3 years

Details

Voltage: 400 VAC (3-phase)
Charging current: 6...16 amperes (adjustable via the app)
Charging power: 2x11 kW
RFID reader: 6 cards (additional cards can be purchased upon request)
The cards can be topped up with credit via a mobile phone app (an NFC-enabled phone is required)
Communication mode: WIFI (we can connect to our phone and router via the hotspot)
Free cloud service
LED panel display
Leakage DC protection: DC detection: ≤6 mA DC
AC ground fault detection: 30 mA AC
Charger cable length: 5 m (5×2.5 mm² + 2×0.5 mm²)
Connection cable length: 0.9 m (5×6 mm²)
Plug type: Type 2 (IEC62196-2, Mennekes)
IP protection rating: IP 55
Dimensions: 32 × 45 × 14 cm
Weight: 14 kg (2 chargers), 18 kg (station)
Accessories: Wall bracket and cable holder
Warranty: 3 years

The system displays the network voltage for each phase, the current flowing through, the energy loaded/consumed in kWh, and the internal temperature of the device.

Info

Producer:

Duosida

Website:

http://duosida.hu

Weight:

33 kg/db
