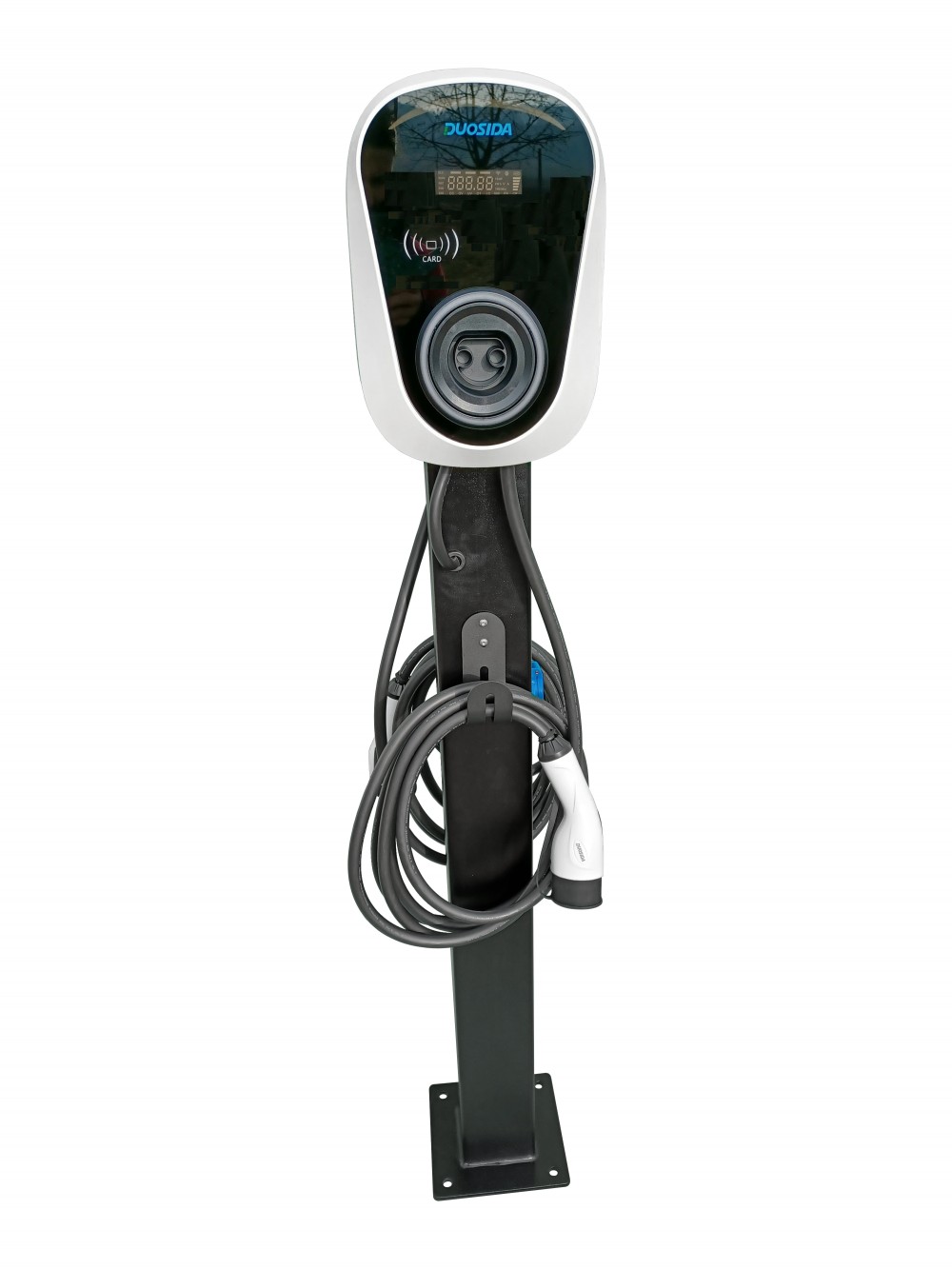

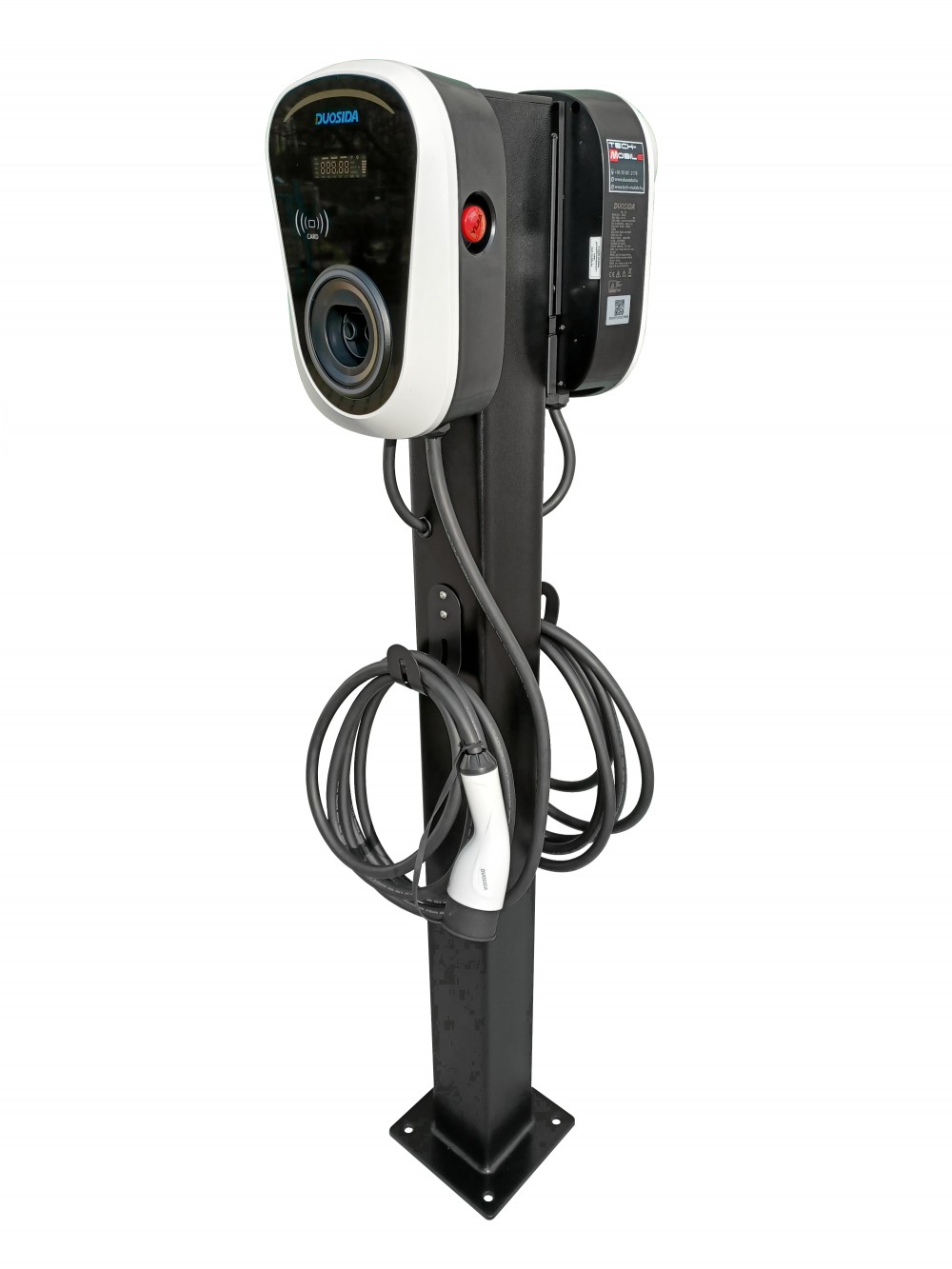

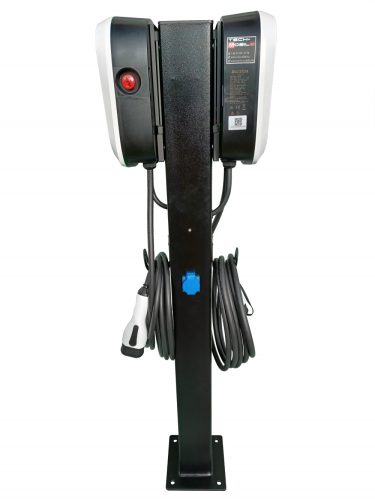

Charging station with 2x22kW Duosida wallbox charger equipped with 5 m Type 2 plug charging cable
Electric vehicle charging station 2x22 kW Duosida with 3 phase wall chargers, 5m Type 2 cable with plug, WIFI and load management
While the electric vehicle is charging, other devices can also be connected to the 230 V socket built into the stand.
On request, we can also provide LED lighting, which in addition to the constant directional light also switches on a reflector light to detect our movement.
The stand is made of black powder-coated steel.

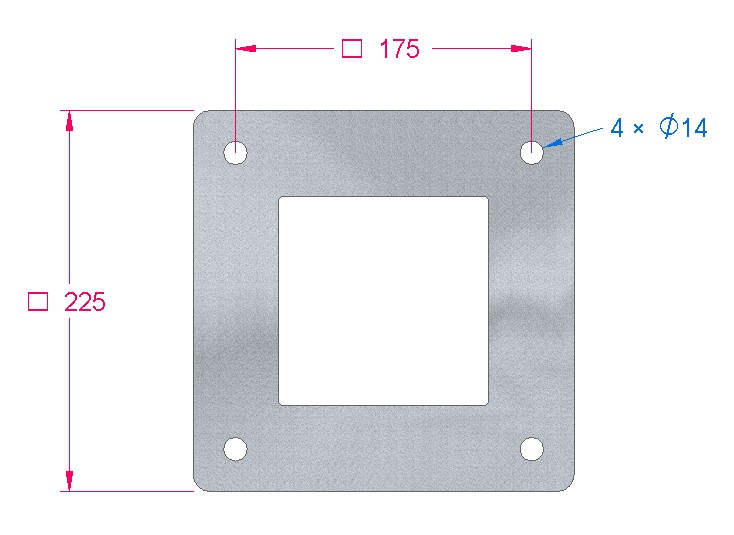

Stand dimensions: 12 × 12 × 150 cm
Charging power: max 2x 22 kW
Charging current: 6...32 A (the desired value can be easily set from the app using a phone connected to the wall charger's WIFI hotspot)
RFID reader + 6 cards (not required, but can be used to ensure that unauthorized persons cannot charge your device)
LED display panel
Free cloud service.
Charging cable length: 5 m
Plug type: type 2
IP protection: IP 55
Warranty: 3 years
Voltage: 400 Vac (3 phase)
Charging current: 6...32 amps (adjustable from the app)
Charging power: 2x22 kW
RFID reader with 6 cards (additional cards available on request)
cards can be recharged with credit via mobile phone app (NFC phone required)
communication mode: WIFI (hotspot to connect to your phone and your router)
Free cloud service.
LED panel display
DC leakage protection: DC detection: ≤6 mA DC
AC ground fault detection: 30 mA AC
Charging cable length: 5 m (5×6 mm2 + 2×0.5 mm2)
Connecting cable length: 0.9 m (5×6 mm2)
Plug type: Type 2 (IEC62196-2, Mennekes)
IP protection: IP 55
Enclosure dimensions: 32 × 45 × 14 cm
Weight: 20 kg (2 chargers), 21,5 kg (stand)
Accessories: wall bracket and cable holder
Warranty: 3 years
During operation, the charger displays the mains voltage per phase, the current current flow, the energy loaded/consumed in kWh and the internal temperature of the equipment.
