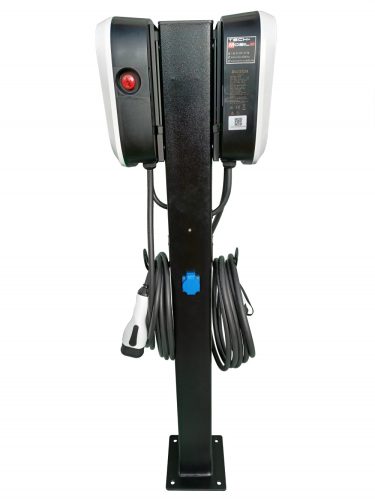

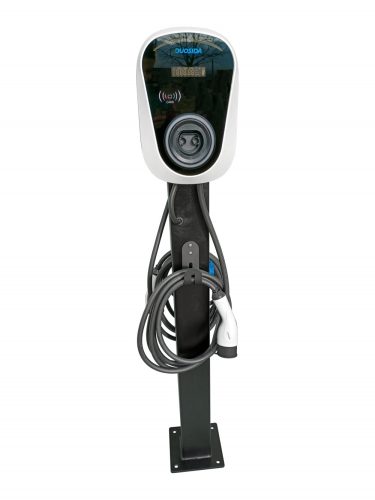

Charging station with 2x7.4 kW Duosida wallbox charger and 5 m cable equipped with Type 2 plug
Electric vehicle charging station with 2x7.4 kW Duosida wall chargers, 5m Type 2 cable with 1 phase, WIFI and load management
While charging the electric car, other consumers can be operated from the 230 V socket built into the pole.
On request, we can also provide LED lighting, which in addition to the constant directional light also switches on a reflector light to detect our movement.
The stand is made of black powder-coated steel.

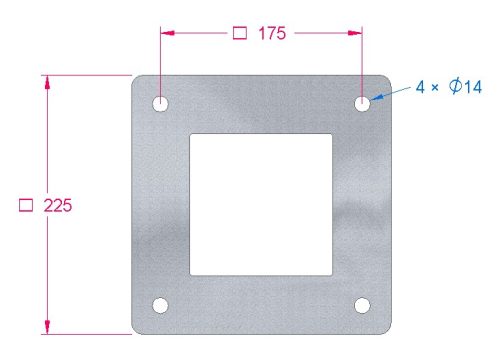

Stand dimensions: 12 × 12 × 150 cm
Charging power: max. 2x 7.4 kW
Charging current: 6...32 A (the desired value can be easily set from the app using a phone connected to the wall charger's WIFI hotspot)
RFID reader + 3 cards (not required, but can be used to ensure that unauthorized persons cannot charge your device)
LED information panel
Free cloud service.
Charging cable length: 5 m
Plug type: type 2
IP protection: IP 55
Warranty: 3 years
Voltage: 230 Vac (1 phase)
Charging current: 6...32 amps (adjustable from the app)
Charging power: 2x7.4 kW
RFID reader with 6 cards (additional cards available on request)
cards can be topped up with credit via mobile phone app (NFC phone required)
communication mode: WIFI (hotspot to connect to your phone and your router)
Free cloud service.
LED panel display
DC leakage protection: DC detection: ≤6 mA DC
AC ground fault detection: 30 mA AC
Charging cable length: 5 m (3×6 mm2 + 2×0.5 mm2)
Connecting cable length: 0.9 m (5×6 mm2)
Plug type: Type 2 (IEC62196-2, Mennekes)
IP protection: IP 55
Enclosure dimensions: 32 × 45 × 14 cm
Weight: 12 kg (2 chargers), 18 kg (column)
Accessories: wall bracket and cable holder
Warranty: 3 years
