Charging statioan with 2x22kW Duosida wallbox charger and Type 2 socket, RFID, WIFI

1 068 €+áfa= 1 356 €

Charging statioan with 2x22kW Duosida wallbox charger and Type 2 socket, RFID, WIFI

Available for order

1 068 €+áfa= 1 356 €

Type of construction:

with charging cable

with socket

Plug Type (EV side):

Type 2

Power:

2 x 11 kW (3×16 A)

2 x 22 kW (3×32 A)

2 x 7.4 kW (1×32 A)

11 kW (3×16 A)

22 kW (3×32 A)

Number of phase:

Current:

32 A

Identification mode:

RFID, WIFI, OCPP

Bonus point : 0 €

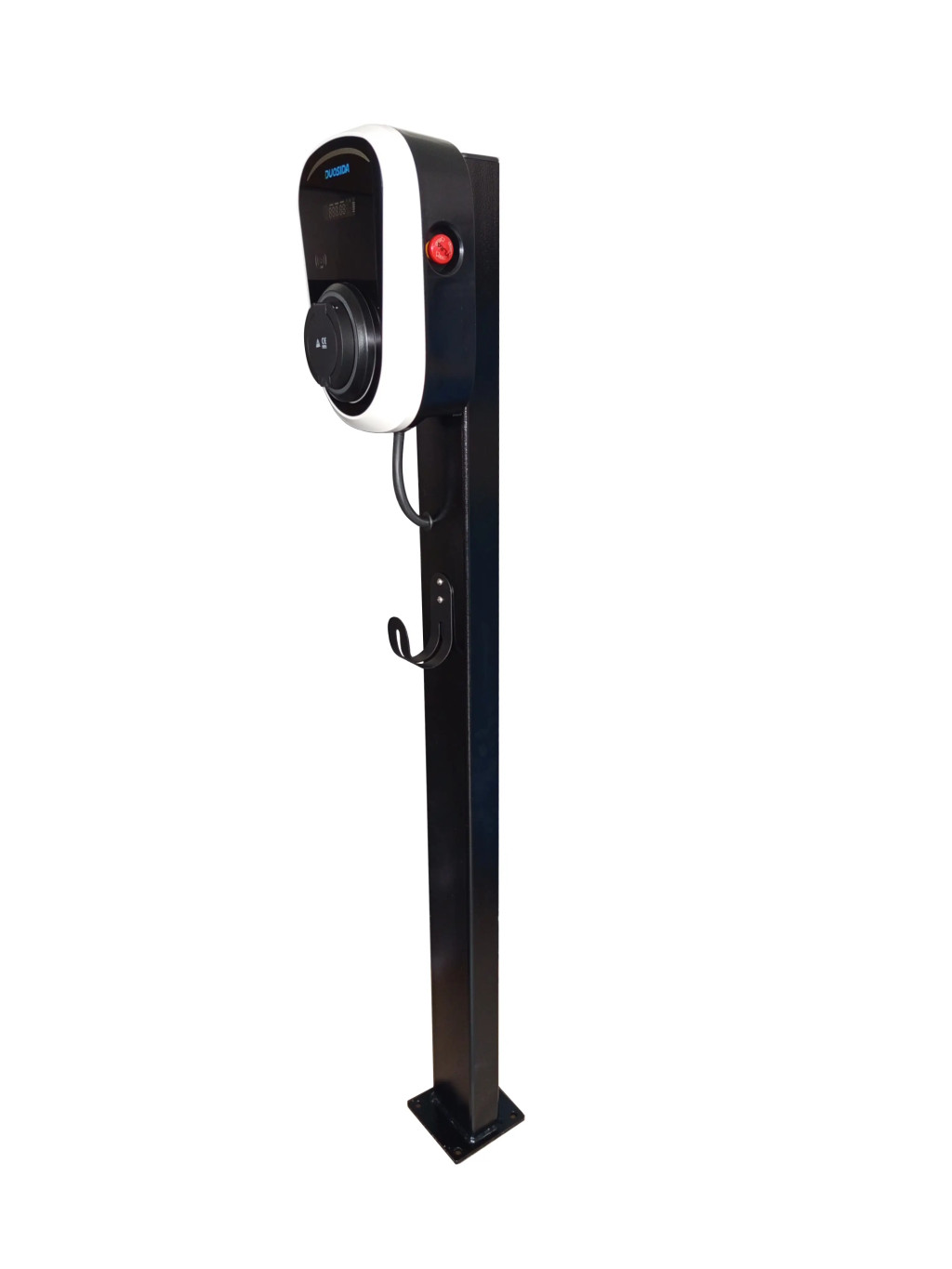

Electric car charging station 2x22 kW Duosida with 3 phase wall chargers, Type 2 socket, WIFI and charge management

While the electric car is charging, other devices can also be operated from the 230 V socket built into the stand.
On request, we can also provide LED lighting, which in addition to the constant directional light also switches on a reflector light to detect our movement.
The stand is made of black powder-coated steel.

Stand dimensions: 12 × 12 × 150 cm

Charging power: max 2x 22 kW
Charging current: 6...32 A (the desired value can be easily set from the app using a phone connected to the wall charger's WIFI hotspot)
RFID reader + 6 cards (not required, but can be used to ensure that unauthorized persons cannot charge your device)
LED information panel
Free cloud service.
Plug type: type 2
IP protection: IP 55
Warranty: 3 years

Details

Voltage: 400 Vac (3 phase)
Charging current: 6...32 amps (adjustable from the app)
Charging power: 2x22 kW
RFID reader with 6 cards (additional cards available on request)
cards can be loaded with credit via mobile phone app (NFC phone required)
communication mode: WIFI (hotspot to connect to your phone and your router)
Free cloud service.
LED panel display
DC leakage protection: DC detection: ≤6 mA DC
AC ground fault detection: 30 mA AC
Connecting cable length: 0.9 m (5×6 mm2)
Plug type: Type 2 (IEC62196-2, Mennekes)
IP protection: IP 55
Enclosure dimensions: 32 × 45 × 14 cm
Weight: 12 kg (2 chargers), 18 kg (column)
Accessories: wall bracket and cable holder
Warranty: 3 years

Displays the mains voltage per phase, the current flow, the energy loaded/consumed in kWh and the internal temperature of the equipment.

Info

Producer:

Duosida

Website:

http://duosida.hu

Weight:

18 kg/db
