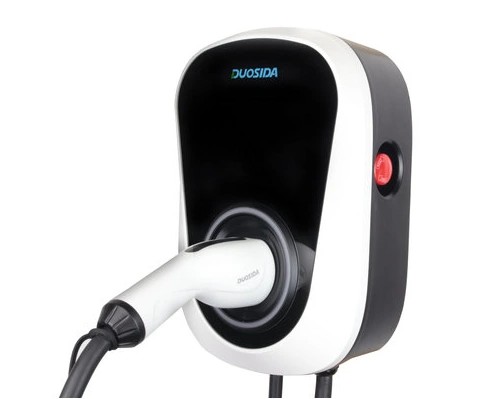

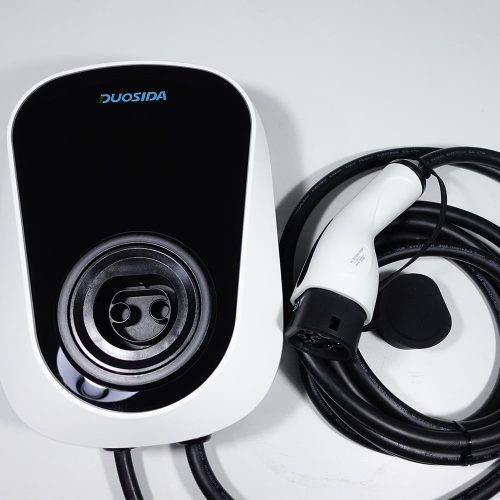

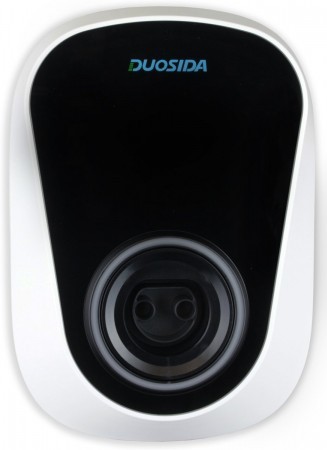

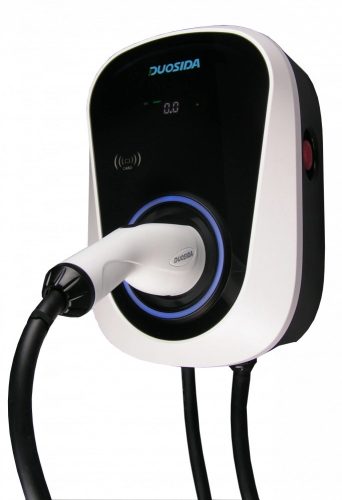

EV Wallbox Charger 11 kW, with 5 m Type2 cable, 3×16 A + RFID + WIFI + 4G + LAN, DUOSIDA
The Duosida wallbox charger with 11 kW charging power...
is an easy to use and versatile electric vehicle charger. Perfect for those who want to charge safely and conveniently in the comfort of their own home. This 3-phase charger is perfect for electric vehicles that can be charged with a Type 2 charging cable.
Dynamic load management allows the wall charger not to overload the household circuit. This is very useful when charging the car at the same time as other larger electrical appliances.
The wallbox charger has a WIFI connection, which allows you to monitor the charging process of your car remotely. This makes it easy to check the charging status of the car, the current charging speed, the charging time. The charging history, i.e. when and how much energy has been charged into the car, can be read from your phone at any time.

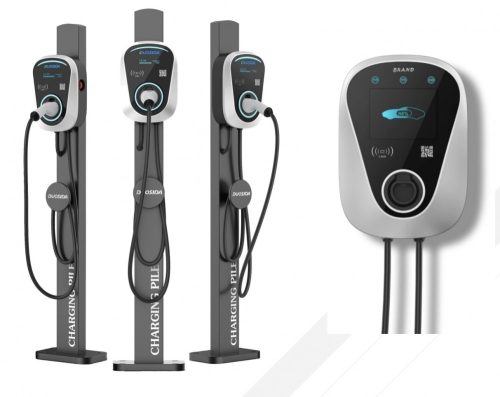

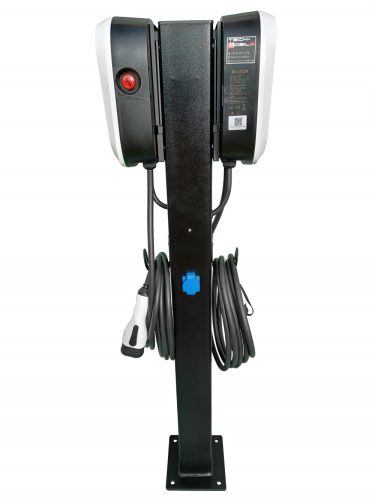

The 11 kW Duosida wallbox charger uses the latest technology for safe and fast charging. The device can be easily installed on any wall or charging post. Its stylish appearance makes it a beautiful addition to any home environment.
Product Features:
- Charging Power: 11 kW
- Voltage: 400 V (3-phase)
- Charging Current: 3×16 amps

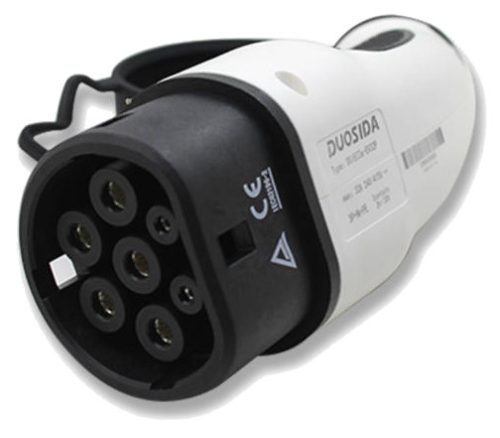

- Connector Type: Type 2 (IEC62196-2, Mennekes)
- Cable Length: 5 m (custom lengths available upon request)
- Warranty: 3 years
- Communication: WIFI connection (connects to phone and router via hotspot)
- Free Cloud Service
Additional Features:
- Measurement and Display: Network voltage per phase, current flow per phase, and energy consumption in kWh.
- RFID Identification: Includes 3 MIFARE Classic cards, rechargeable via mobile app (NFC required).

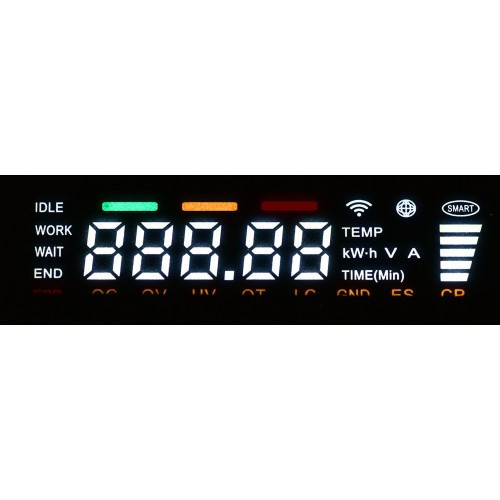

- LED Display Panel: Provides quick information at a glance.
- Protection: Leakage current detection (≤6 mA DC), ground fault detection (30 mA AC).
- IP Protection Rating: IP 55
Technical Specifications:
- Dimensions: 32 × 45 × 14 cm
- Weight: 7 kg
- Connection Cable Length: 0.9 m (5×2.5 mm²)
- Accessories: Wall mount and cable holder
Load Management:
The device can optionally be equipped with a dynamic power management tool, which monitors the total energy consumption of the property in real-time and automatically adjusts the EV charging power accordingly. This ensures efficient energy usage while protecting the property’s electrical system.
