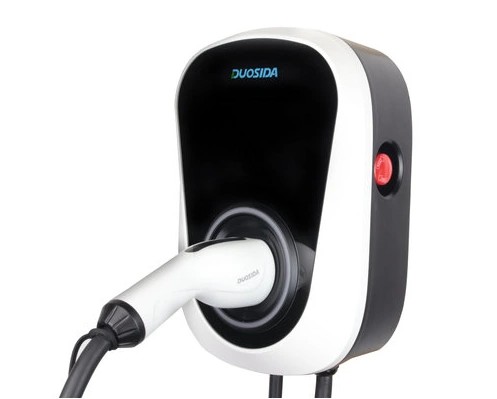

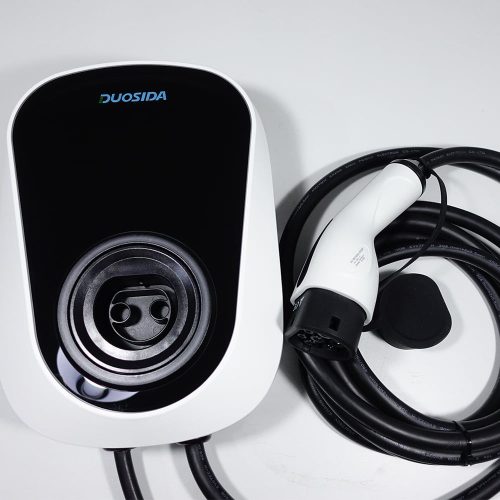

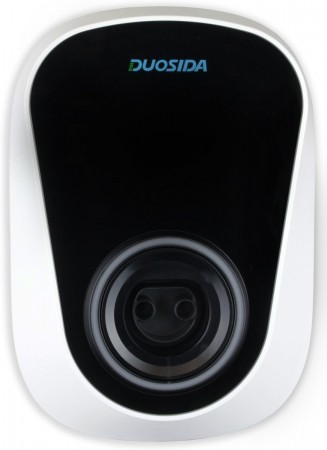

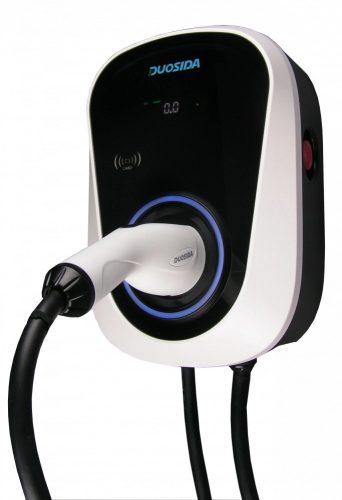

EV Wallbox charger 22 kW, with 5 m Type2 cable, 3×32 A + RFID + WIFI + 4G + LAN, DUOSIDA
770 €+áfa= 978 €
EV Wallbox charger 22 kW, with 5 m Type2 cable, 3×32 A + RFID + WIFI + 4G + LAN, DUOSIDA
In stock 7 db
770 €+áfa= 978 €
Number of phase:
3
Current:
3x32 A
Display:
LED display
Type of construction
Type of construction:
Brand
Brand:
Power
Power:
Length of cable
Length of cable:
Identification mode
Identification mode:
Points earned after purchase:
0 €
The Duosida wallbox charger with 22 kW charging power...
is an easy to use and versatile electric vehicle charger. Perfect for those who want to charge safely and conveniently in the comfort of their own home. This 3-phase charger is perfect for electric vehicles that can be charged with a Type 2 charging cable.
Dynamic load management allows the wall charger not to overload the household circuit. This is very useful when charging the car at the same time as other larger electrical appliances.
The wallbox charger has a WIFI connection, which allows you to monitor the charging process of your car remotely. This makes it easy to check the charging status of the car, the current charging speed, the charging time. The charging history, i.e. when and how much energy has been charged into the car, can be read from your phone at any time.

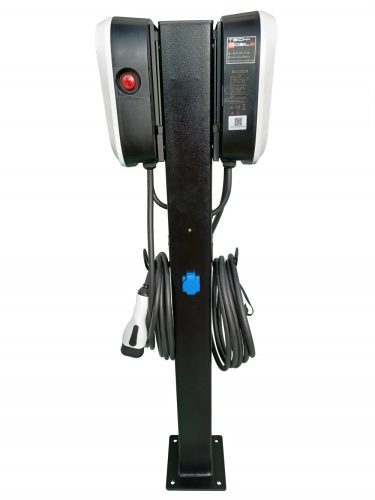

The 22 kW Duosida wallbox charger uses the latest technology for safe and fast charging. The device can be easily installed on any wall or charging post. Its stylish appearance makes it a beautiful addition to any home environment.
We also recommend the following product as an accessory
Details
Wallbox Charger 22 kW, 3-Phase with Type 2 Charging Cable, Wi-Fi Connectivity, Adjustable Load Management, and 4G+LAN.
- Charging Power: 22 kW
- Free Cloud Service
- Charging Cable Length: 5 m (custom lengths available)
- Connector Type: Type 2
- Warranty: 3 years
- Features:
- Measures and displays network voltage per phase and the current flowing through each phase individually.
- Displays total energy consumption in kWh.
- Voltage: 400 Vac (3-phase)
- Charging Current: 3×32 amps
- RFID Reader: Comes with 3 MIFARE Classic cards (additional cards available upon request). Cards can be topped up with credits using a mobile app (NFC-enabled phone required).
- Communication Mode: Wi-Fi (connect via hotspot to your phone or router).
- Free Cloud Service

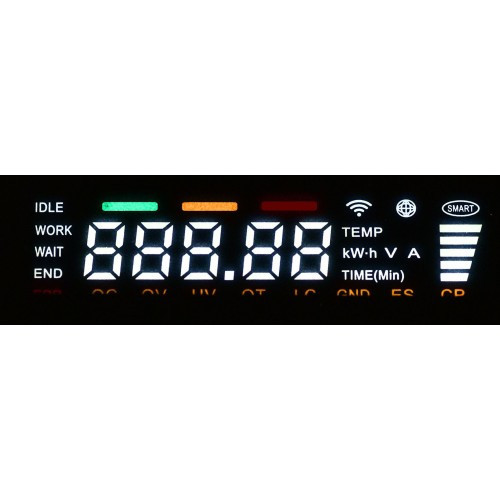

- LED Display Panel: Provides various quick insights.
- Safety Features:
- DC leakage detection: ≤6 mA DC
- AC ground fault detection: 30 mA AC
- Charging Cable Specifications: 5 m (5×6 mm² + 2×0.5 mm²)
- Connection Cable Length: 0.9 m (5×6 mm²)

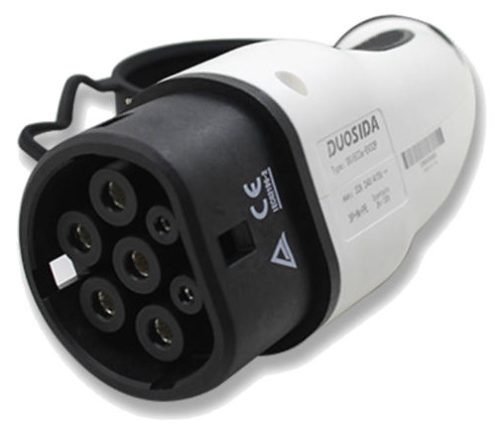

- Connector Type: Type 2 (IEC62196-2, Mennekes)
- IP Rating: IP 55
- Dimensions: 32 × 45 × 14 cm
- Weight: 7 kg
- Accessories: Wall bracket and cable holder
Dynamic Power Management Device (Optional Accessory):
With the dynamic power management device, the Duosida EV wall charger can continuously and dynamically control charging power. The device monitors the property’s total energy usage in real-time (phase-by-phase current consumption) and automatically adjusts the EV charging power (increasing or decreasing) based on this data.
