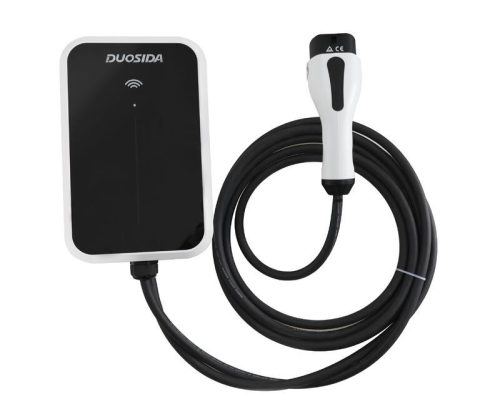

EV Wallbox charger 22 kW, with 5 m Type2 cable, slim, + WIFI + RFID + LAN, DUOSIDA

In stock 50 db

Number of phase:

Current:

32 A

Display:

LED light

Type of construction:

with charging cable

with socket

Brand:

DUOSIDA

Plug Type (EV side):

Type 2

Power:

7.4 kW (1×32 A)

11 kW (3×16 A)

22 kW (3×32 A)

Length of cable:

2.5 m

5 m

7 m

10 m

Identification mode:

nincs

RFID, WIFI, OCPP

BT, WIFI, RFID, OCPP , LAN

The Duosida wall charger with 22 kW charging power...
is an easy to use and versatile electric vehicle charger. Perfect for those who want to charge safely and conveniently in the comfort of their own home. This 3-phase charger is perfect for electric vehicles that can be charged with a Type 2 charging cable.
Dynamic load management allows the wall charger not to overload the household circuit. This is very useful when charging the car at the same time as other larger electrical appliances.
The wall charger has a WIFI connection, which allows you to monitor the charging process of your car remotely. This makes it easy to check the charging status of the car, the current charging speed, the charging time. The charging history, when and how much energy has been charged into the car, can be read from your phone at any time.
The 22 kW Duosida wall charger uses the latest technology for safe and fast charging. The device can be easily installed on any wall or charging post. Its stylish appearance makes it a beautiful addition to any home environment.

Details

Product Features:

Maximum Charging Power: 22 kW
PlugType: Type 2 (IEC62196-2, Mennekes)
Cable Length: 5 m (custom lengths available upon request)
Warranty: 3 years
Voltage: 400 Vac (3-phase)
Charging Current: 3×32 amps
Connectivity Options: Bluetooth (BT) and WIFI
Free OCPP-Compatible Cloud Service

Functions:

RFID Identification: Includes 3 MIFARE Classic cards, with additional cards available upon request. Manage cards via the DS Charge mobile app.
Protection: Leakage current detection (≤6 mA DC).
Dynamic Load Management Option: Available for optimized energy usage.

Technical Specifications:

Charging Cable Length: 5 m (5×6 mm² + 2×0.5 mm²)
Plug Cable Length: 0.9 m (5×2.5 mm²)
Plug Type: Type 2
Reliability: Safe and secure operation in any environment.

Info

Brand:

DUOSIDA

Producer:

Duosida

Website:

https://duosida.hu

Weight:

4 kg/db
