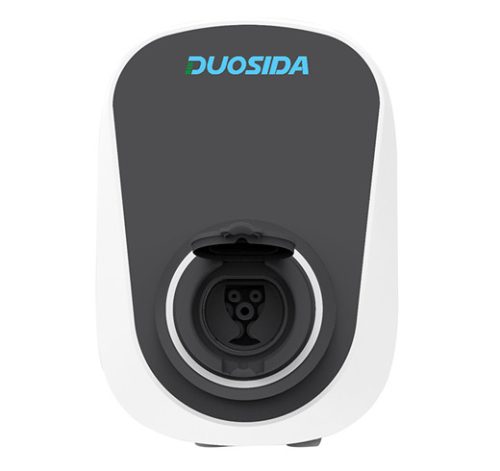

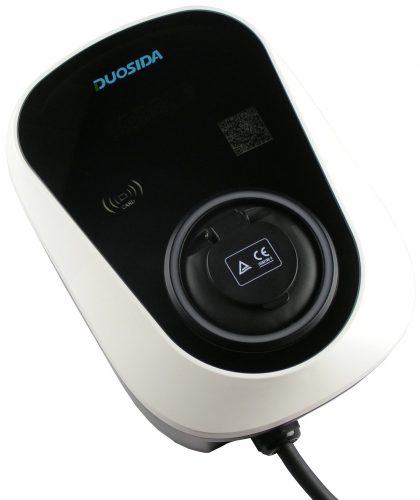

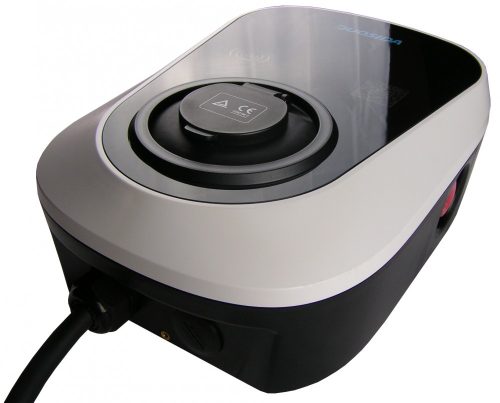

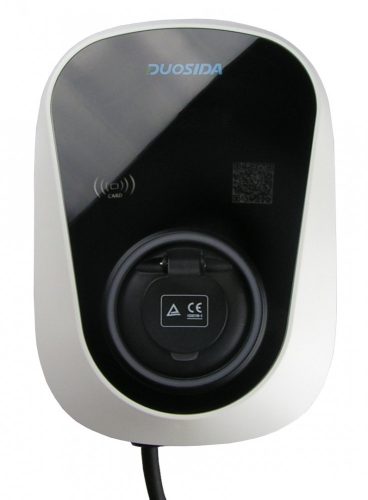

EV Wallbox charger 22 kW, with Type2 socket, 3-phase, 32 A + RFID + WIFI + 4G + LAN, DUOSIDA
Duosida 3-Phase Wall Charger with Type 2 Socket for Electric Cars + RFID Cards + Wi-Fi Hotspot, 4G + LAN Connectivity
This charger delivers 22 kW charging power and is compatible with standard public EV charging cables, supporting both Type 1 and Type 2 connections.
- Power Output: 22 kW @ 400 VAC (3-phase)
- Charging Current: 32 A (adjustable between 6 and 32 A via the app)
- Connector Type: Type 2 (Mennekes)
- Free Cloud Service: ocpp.ds-wallbox.com
- IP Rating: IP 55 (weatherproof for outdoor use)
- Warranty: 3 years
This versatile charger offers RFID authentication, integrated Wi-Fi, 4G, and LAN connectivity for seamless monitoring and control, making it an excellent choice for reliable and smart EV charging.
Charging Specifications:
- Charging Power: Max. 22 kW @ 400 VAC (3-phase)
- Charging Current: 32 A, adjustable between 6 A and 32 A via a smartphone app
- Connector Socket: Type 2 (IEC62196-2, Mennekes)
Communication Features:
- Wi-Fi: Connects to your phone and/or router, with free cloud service included
- 4G and LAN support
Technical Details:
- IP Rating: IP 55 (weatherproof)
- Dimensions: 225 × 325 × 110 mm
- RFID Cards: ISO 14443-3A MIFARE Classic 1k
- Input Cable: 0.9 m (5×6 mm²)
Safety Protections:
- DC Leakage Protection: Detects ≤6 mA DC leakage
- AC Ground Fault Detection: 30 mA AC
- RCCB/FI: Not integrated
Physical Characteristics:
- Weight: 4.5 kg
- Accessories: Wall mount bracket and hook for cable storage
Warranty:
- 3 years
As the number of electric cars increases, the importance of EV charging grows as well. Wall chargers for electric cars are among the most essential tools for efficient charging. The Duosida EV wall charger, with its 22 kW power output, Type 2 socket, and 3-phase system, ensures fast and effective charging.
The 3-phase system supports a maximum current of 3 x 32 A, allowing the charger to fully recharge electric cars in less time.
The wall charger is equipped with an RFID reader, which enables restricted access. Only authorized users can activate the charger by identifying themselves, preventing unauthorized use.
The Duosida smart wall charger also features Wi-Fi connectivity, enabling users to monitor and control the charger and the charging process remotely via their smartphones. This is particularly useful for checking the vehicle’s charging status from afar. The charger is easy and convenient to use.
With an optional dynamic power management device, the Duosida wall charger can achieve continuous and dynamic control of its charging performance. This means the device monitors the total energy consumption of the property (house, apartment, garage, holiday home, etc.) in real time, measuring current draw per phase. Based on this data, it automatically adjusts the EV’s charging power, either limiting or increasing it as needed, optimizing energy usage while preventing overloads.
